Ultra high resolution content supports > 1080P
- Integrates GeForce 9300 graphic engine with PureVideo HD hardware decoder for
H.264, VC-1, WMV-HD, MEPG-HD contents with low CPU loading. - Supports smooth 3D content
- HDMI, VGA interface to supports dual display.
Rich I/O features and expandability - RS232 x 1, Giga-LAN x 1, USB x 6, e-SATA x 1
- Supports Optional Wireless, TV tuner card with Mini-card slot
- Supports 3.5G module (by optional MUSB bridge board with SIM slot)
Compact in size with optional mounting solutions - Optional VESA mounting kits
- Optional Titan series - integrates display mounting solution with Digital Engine and
cable management. - Optional Engine Core that contains up to 6 digital engines as small server workstation

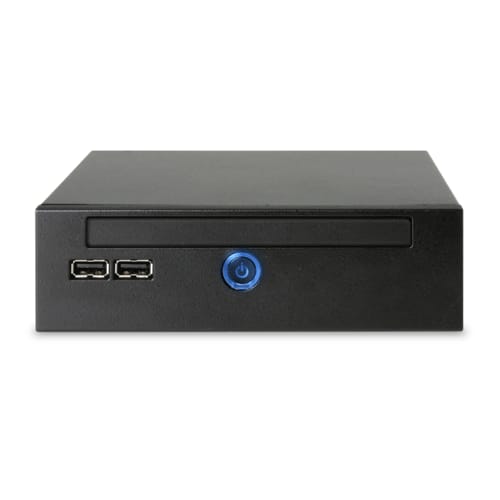

Specification | | Model | DE7000 | | Housing Material: | SECC t=0.8mm |
|---|
| Housing Color: | Black |
|---|
| Form Factor: | AOpen Form Factor |
|---|
| Dimension: | 6.54(W) x 1.89(H) x 6.46(D) inch
166(W) x 48(H) x 164.1(D) mm |
|---|
| Volume: | 1.30L |
|---|
| Weight(Kg/Pound) : | 1.2 kg / 2.64 pound (N.W.) |
|---|
| CPU: | FSB 667/800/1066MHz
Support Intel Core 2 Duo, Celeron Mobile CPU (Penryn & Santa Rosa Refresh) TDP≦35W
Socket P |
|---|
| Chipset: | Nvidia MCP7A-LP Chipset |
|---|
| Memory: | Dual Channel Mode
DDRIII SO-DIMM x 2
Max memory size : 4GB*
800/1066/1333 |
|---|
| Graphics: | DVI Port : N/A
VGA Port : x 1
HDMI Port : x 1
Multi-TV Out Port : N/A
GeForce 9300 |
|---|
| Expansion Slot: | mini Card Slot : Optional
mini PCI Slot : N/A |
|---|
| Audio: | Realtek ALC662 HD Audio CODEC on-board
Stereo / 5.1 CH with HDMI |
|---|
| LAN: | Realtek Gigabit Ethernet/ 10/100/1000 |
|---|
| USB: | Integrated in chipset
x 6 (4 (Rear), 2 (Front)) |
|---|
| IEEE 1394: | N/A |
|---|
| Storage: | ATA Connector : x 1 (for Slim Optical)
S-ATA Connector : x 1 (for 2.5" HDD) |
|---|
| Storage Bay: | Slot-in Slim ODD Bay : x 1
2.5" SATA II HDD Bay : x 1
CF card socket : N/A |
|---|
| Chassis: | Slot-in Slim ODD Bay x 1
2.5" SATA II HDD Bay x 1 |
|---|
| Front Panel IO: | Power Button : Power Button x 1
HDD indicator (blue) : HDD indicator (Blue) x 1
Power indicator (blue) : Power indicator (Blue) x 1
USB 2.0 Port : USB 2.0 Port x 2 |
|---|
| Rear Panel IO: | DC in Jack : x 1
DVI Port : N/A
VGA Port : x 1
HDMI Port : x 1
S-Video Out Port : N/A
USB 2.0 Port : x 4 (Rear)
IEEE 1394 Port : N/A
RJ-45 LAN Jack : x 1
Legacy RS232 Serial Port (COM Port) : RS232 Serial Port x 1
PS/2 Port : N/A
Audio Set Line-In : x 1
Audio Set Line-Out : x 1
Audio Set Mic-In : x 1
Upgrade for Antenna Port : x 2
Kensington Lock Hole : x 1
Audio I/O Ports : 5.1 channel Audio I/O Ports x 1 (Line-In, Line-Out, Mic-In) |
|---|
| Security: | N/A
Kensington Lock Hole : x 1 (Rear) |
|---|
| CPU Thermal: | Module : AOpen Thermal Module
Noise : 27dB |
|---|
| WatchDog Timer: | 1 ~ 255 sec/min |
|---|
| Adapter: | 90W (20V, 4.5A) AC Adapter |
|---|
| Input Voltage: | AC 100 ~ 240V |
|---|
| Environment: | MTBF : 40,000 hrs
Operating Temperature : 0 ~ 50°C (32 ~ 122°F)
Storage Temperature : -30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity : 90% RH (45°C non-Condensing)
Operating Vibration : 0.5Grms, Random, 10~500Hz, X,Y,Z 3Axes, 0.5hr/Axis
Non-Operating Vibration : 2Grms, random, 10~300Hz, X,Y,Z 3Axes, 1hr/Axis
Operating Shock : 8G, half sine, 11ms duration, X,Y,Z 3Axes, 6Direction, 3 shocks/direction
Non-Operating Shock : 50G, Half sine, 11ms duration |
|---|
| Accessory: | Optional : Please check out our "Accessories" for detail
Please check out your local dealer. |
|---|
| Certification: | CE, FCC, UL, CB |
|---|
| Support OS: | Windows Vista Premium / Basic, Windows XP, Windows Embedded, Windows 7 |
|---|
|
|
|
 |
|
 |
|
